S&S, Super Stock single fire ignition kit. 93" S&S Shovel

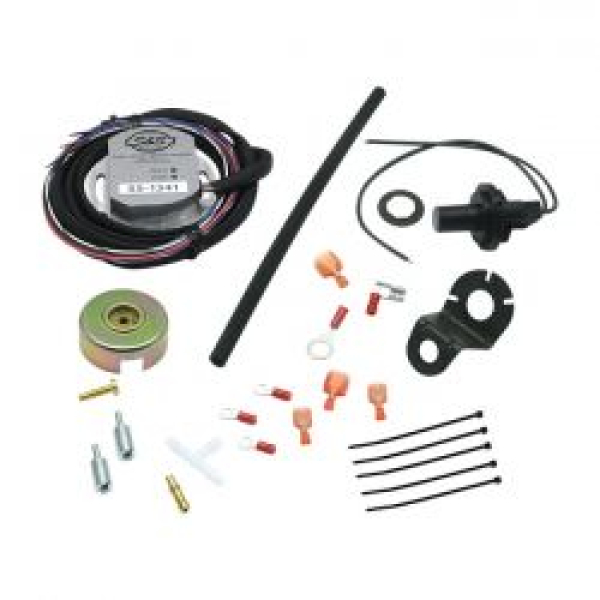

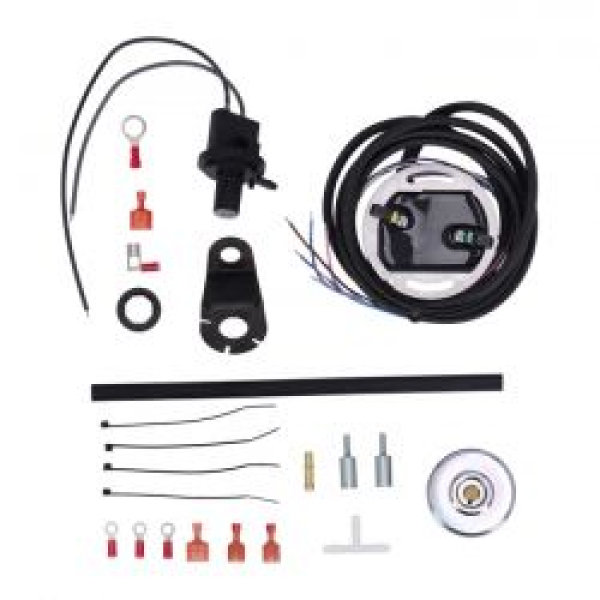

Single fire. For kick start. Complete kit that includes the module with hardware, pick-up cup and mounting screws, VOES switch with hardware, connectors and instructions. Modules are pre-programmed with ignition curves for use with specific S&S engines. Only set basic timing, no further adjustments necessary. Set-up for kick start, where the engine wil spark the first time. (electric start models will turn 3 revolutions before ignition sparks, this to prevent kick-back and damage to electric start components). Note: All modules can be set to kick or electric start by a certified S&S dealer equipped with Super Stock diagnostic cable & software. Then it is also possible to view: Time at wide open throttle (WOT); length of time engine was operated at various temperatures; number of engine starts; total running time; time spent in various RPM ranges; max. RPM and amount of time spent at rev. limit. It also enables the dealer to turn-on the 24 hour 'break-in' rev. limiter function. If set it will protect a new engine by limiting engine revolution. Only after 24 hours runtime the engine will be able to reach the maximum of 6300 RPM. Only modules on new S&S engines sold with the Super Stock ignition system will have the 'break-in' rev. limiter turned-on.

Fits: > FOR 93" S&S SHOVEL ENGINES
